3D-Printable Micro Quad Frames


In this section you can find a collection of 3D-printable micro quadcopter frames which are made for best fit with the NanoCam3D Mk.1 camera. The STL-files of these frames are offered free-of-charge and can be printed with commercially available 3D-printers working with fused filament fabrication. All frames shown here were printed with ABS filament, other materials might work as well.



The overall frame weight is typically around 10g. The camera mount in each frame design is adjusted with 10° tilt angle for obstruction-free 3D-viewing experience. STL-files for camera mounts with alternative tilt angle are available for free on request.

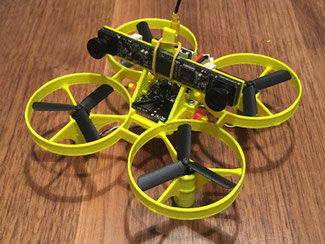

WB80-8520-QX70FC

  • 80mm wheel base
  • 8520 brushed motors
  • Reuse of QX70 flight controller

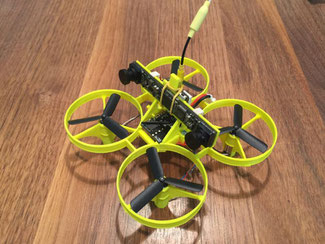

WB85-8520-DSF3FC

  • 85mm wheel base
  • 8520 brushed motors
  • DSF3 EVO BRUSHED flight controller

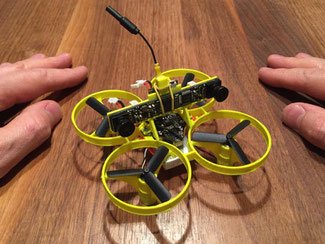

WB85-7020-DSF3FC



  • 85mm wheel base
  • 0720 brushed motors
  • DSF3 EVO BRUSHED flight controller
